Research & Development Kits
R&D; Kits include a Mobile Dock unit, a set of small, medium and large handgrips, a set of small and large docking plates, and a micro-USB charging cord with wall plug. The Mobile Dock unit is a high-fidelity prototype designed to work with existing technology platforms, and is intended for research, development and training purposes. To learn more about our research and development efforts, please click here.
TREWGrip Mobile Dock (MD03)

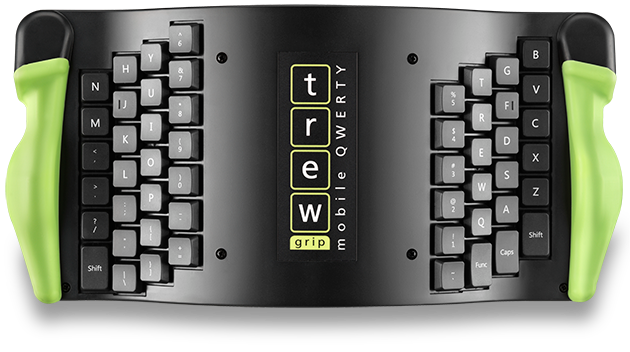

A handheld keyboard with built-in air mouse and game controller capabilities that works with mobile devices, desktop
computers and AR/VR technology. Visual cues on the front allow non-touch-typists to locate the keys on the back using
hand-eye coordination. While holding the Mobile Dock, a user can control mouse movement and game interactions by
simply tilting and turning the device. With its universal dock and Bluetooth HID connectivity, the Mobile Dock supports
various technology platforms while offering a uniform user experience.

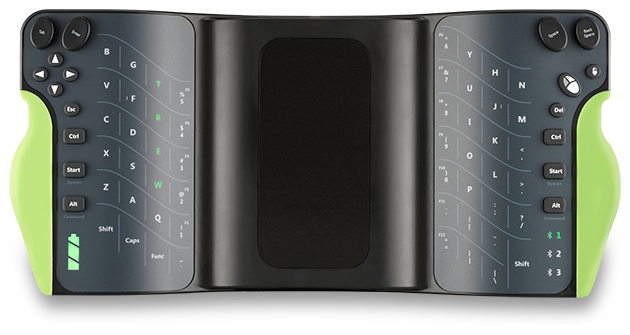

LED Indicator Keys
When a typing key on the back is pressed, the corresponding indicator key on the front illuminates. This helps the user easily locate the typing keys on the back using hand-eye coordination.
Rechargeable Battery
Multiple Device Pairings
Pair up to 3 devices simultaneously for instant switching between Windows, Mac OS, Android and iOS Bluetooth HID-enabled technology.

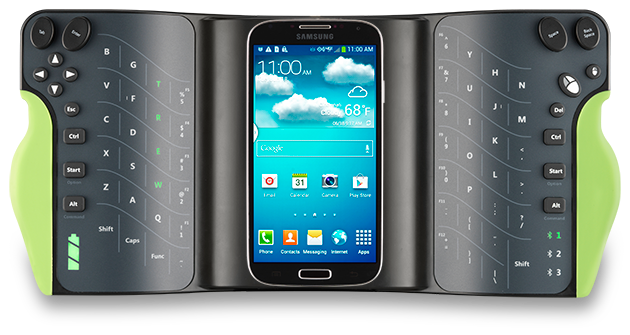

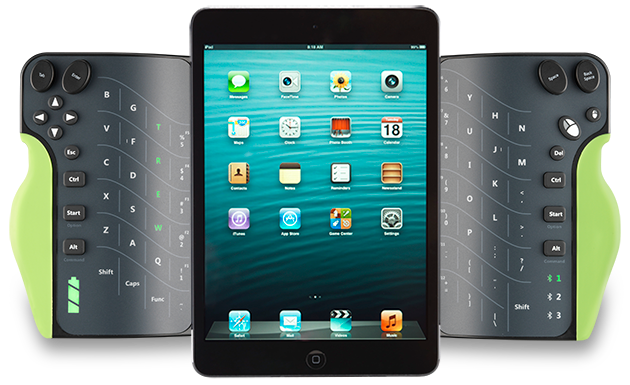

Docking Plates
Attach mobile devices (up to 5.3″ wide), using a suction/magnetic mount and Bluetooth connection, for usability testing and end-user pilots.
Sizable Handgrips
Designed to fit different size hands and user preferences, R&D; Kits include one set of small, medium and large silicone handgrips.
Multiple Device Pairings
Size (length x height x depth):
Weight:
Bluetooth Version:
Bluetooth Range:
Battery Type:
Battery Life:
Battery Recharge Time:
Charging Port:
Maximum Docking Size:
Maximum Recommended Docking Weight:
Air Mouse Screen Resolution:
Game Controller:
Operating Systems Supported:
Connectivity Requirement:
12.05 in (306 mm) x 5.87 in (149 mm) x 2.05 in (52 mm)
1lb (450 grams) without handgrips
2.0
up to 30 meters line-of-sight
built-in lithium polymer
up to 15 hours of continuous usage (up to 500 hours on standby)
2 hours with supplied 1A wall charger
USB Micro B
devices up to 5.54 in (140 mm) wide
3lbs with supplied large docking plate
single monitor with resolution up to 4000 x 4000
three degrees of freedom (up/down, left/right, forward/back)
Windows, Mac, Android, iOS
Bluetooth HID 2.0+ compatible system or device
Need more information?
Send us a note and we’ll do our best to answer your questions and provide additional information. We’ll also add you to our mailing list and keep you up to date on new product releases and special offers.
